Four wheel four-wheel high clearance spray bar spray, new self-propelled spray

  • Four wheel four-wheel high clearance spray bar spray, new self-propelled spray
  • Four wheel four-wheel high clearance spray bar spray, new self-propelled spray
  • Four wheel four-wheel high clearance spray bar spray, new self-propelled spray
Model No.︰3WPZ-5000Y
Brand Name︰PETROS
Country of Origin︰China
Unit Price︰-
Minimum Order︰1 set
Share on:

 Total 7 Related Items
12345Next

Product Description

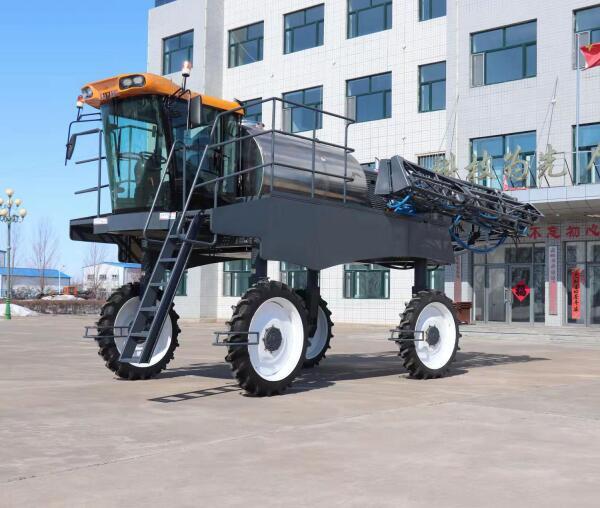

High clearance self -propelled  boom sprayer 3WPZ-5000Y

Model

3WPZ-5000Y

Liquid pump type

Diaphragm pump

Steering mode

Hydraulic assist, four-wheel steering, four-wheel drive


Liquid pump model

MB6360

Mix  mode

 Jet Agitation

Liquid pump Maximum flow

360L/min

Ground clearance

1.9m

Liquid pump Maximum speed

600r/min

Wheel tread

2.6-3.2m

Liquid pump Pressure

3.0Mpa

Three stage filtration system

Tank filtert, Filter, spray head

Medicine box volume

5000L

System working pressure

0.3-0.5Mpa

External dimension

7900X4600X3800mm

Walking speed

30Km/h

Cleaning tank

15L

Work speed

8-18Km/h

Length of spray Rod

27m

Power/speed

162kw---2200r/min(220HP)

Spray Height

0.65-2.8m

Discharge stage

China Ⅲ Emission

Boom

Hydraulic fold and lift

Storage Battery

150Ah/12V x2

Atomization angle

110°

tire type

9.5-38

Nozzle flow

1.2L/min

driver’s cab

separate closed cab

Nozzle distance between

500-700mm(Customizable)

Inside the cab

air conditioning(Optional match precision spray)

Nozzle type

NO.3

Gear position

Stepless speed change

Weight

8600kg

Payment Details︰T/T
Min Order︰1 set
Ship Date︰35days
