Self-propelled spray boom sprayer

Self-propelled spray boom sprayer

Model No.︰3wz-700

Brand Name︰petros

Country of Origin︰China

Unit Price︰-

Minimum Order︰1 pc

Inquire Now

Product Description


3WPZ-700 self propelled boom sprayer
Whole machine
size:Length * width * height (mm)  4780 × 2000 × 2990
Ground clearance (mm):1050
Spray bar length (mm):11350
Boom lifting height (m) 0.5-1.8
Wheel track (mm) 1520
Wheelbase (mm) 2050
whole weight (kg) 1620
Power system:
Engine power (kW / R / min):36.8/2400
Battery capacity:12V100AH
Walking system
Driving mode:  four wheel drive
Steering mode:  four wheel steering
shift mode:  Front three rear two of transmission  (high and low speed)
drive axle structure:  Front and rear differential lock
Walking tire: 1.1m solid wheel
Brake type: hub type
Turning radius (m) 3
Traveling speed (km / h) 0-24
Spray system
Tank volume (L) 700
Working pressure (MPA) 0.5-1.2
Number of sprayers 24
Spray width (mm) 12
Nozzle style fan-shaped fog nozzle
Spray bar material aluminum alloy
Chemical pump structure three cylinder pump
Drug pump flow (L / min) 36-81
Drug pump drive mode hydraulic drive
Fertilizer delivery system
Spreader style: centrifugal
Spreading width (m) 12-18
Fertilizer carrying capacity (kg) 200-350
Application efficiency:60-80 mu / hour
Fuel consumption (L / h) 6
Pesticide utilization rate (%) 70
Selection: fertilizer applicator has single disc, double disc, swing arm type. The nozzle has fan-shaped fog and conical fog.
The above parameters and pictures are for reference only, and the specific data in the appraisal report shall prevail.

Payment Details︰ T/T

Min Order︰ 1sets

Ship Date︰ 35days

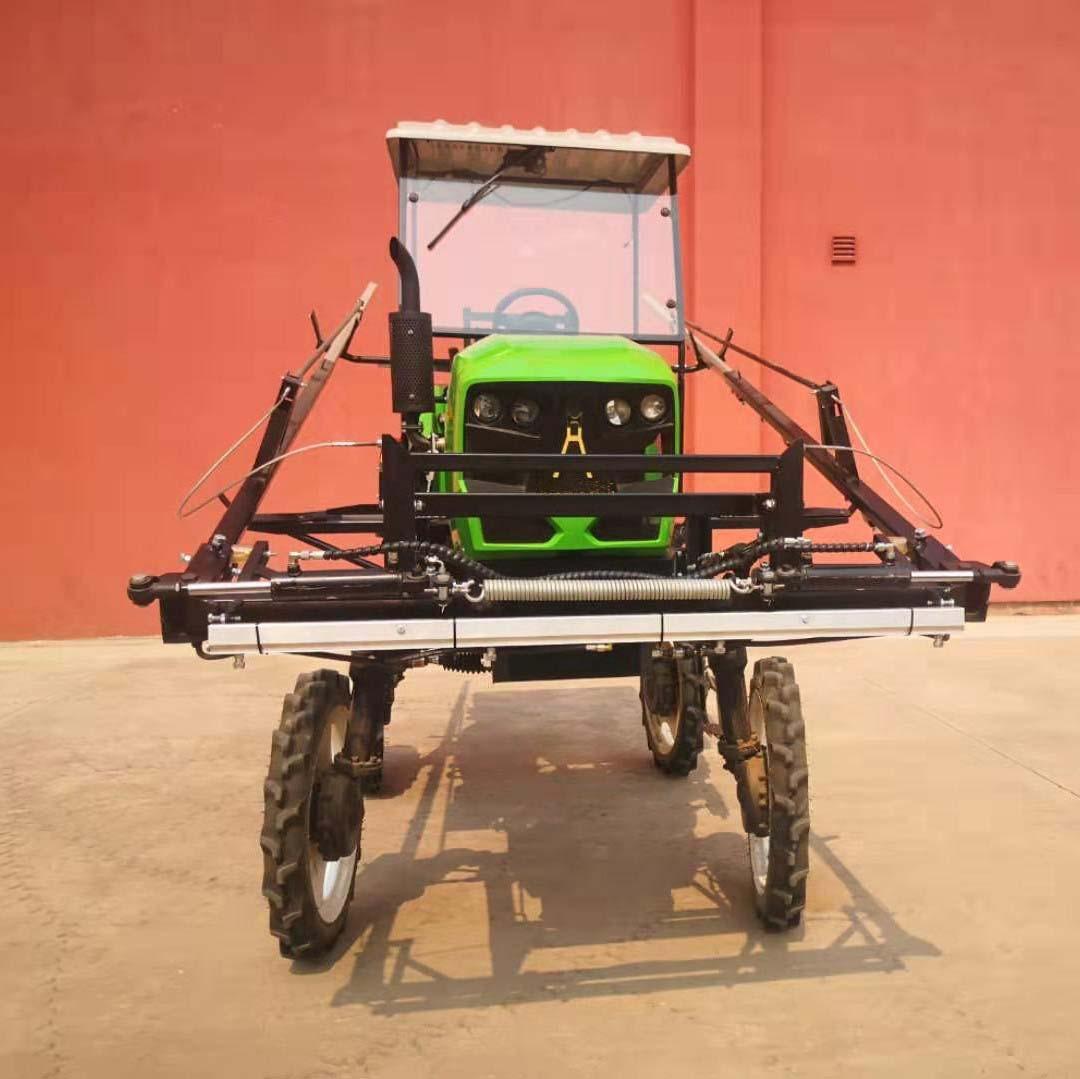

Product Image
